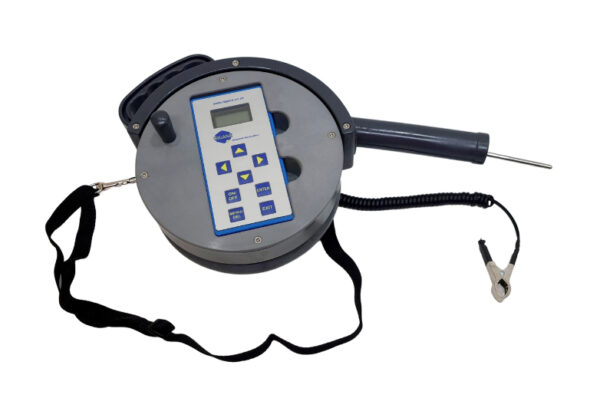

Rigana RTR Digital Thermometer

Rigana`s RTR is an intrinsically safe digital gauging depth thermometer, designed for use in hazardous locations.

The user friendly interface has an easy to navigate menu with an automatic back light feature for low light conditions. The menu allows the user to store up to fifty tank readings in the memory.

The RTR allows the operator to record three readings per tank which includes the temperature, depth, date and time.

With the easy download option, the user is able to transfer the saved data from the unit to a PC via USB.

• The RTR comes with a 9v rechargeable battery
• Manufactured from the highest quality stainless steel

Features:

Measurement Range:  -400C to 1630C (-400F to 3250F)

Ambient Temperature Range:  -200C to 400C (-40F to 1040F)

Resolution:  0.10C or 0.010C Selectable

Temperature Scale:  Centigrade or Fahrenheit

Temperature Accuracy:

-400C to -300C:   ±0.250C

-300C to +1000C:  ±0.10C

-1000C to +1630C:  ±0.250C

Repeatability:  -400C to 1630C @ ±0.10C

Calibration:  Digital One Point 00C

Memory:  50 Tanks, each 3 readings

Display:  LCD 2 lines x 4 Chars each

Power:  “RS PRO” rechargeable 9v battery

Battery Saving:  Auto Shut off

Low Battery indication:  LOW BATT, 25%, 50%, 75%, 100%

Rechargeable Battery Life:  Approx. 50 Hrs

Overall Dimension of Reader:  90 x 166 x 31 mm

Weight of RTR blue box:  286 gram

Instrument Protection:  IP 54

RTR blue box:  Dedicated ABS box

Temperature Sensor:  PT1000 with Lumberg SV-80-8 Plug

Gross Weight:  ± 4.05kgs

Reel – Grade 316:  Stainless Steel/stainless steel bearing



Hazardous Environment Approval:

ATX:  Ex ia IIB T4 Ga

IA Certificate No:  S-XPL/190767 X

Metrology Approval  Portable Electronic Thermometer
